GCK3045 Features and Benefits

Grove-GCK30451-Features-and-Benefits-bw

The GCK3045 city crane is a compact three-axle single cab with a "boom down" design, making it ideal for work in city centres and indoor industrial locations.



    Features:

            • Long boom: 34m
            • Powerful drive
            • Tight turning radius
            • Rigging within carrier with
            • Fully Equipped within 12t per axle
            • Highly manoeuvrable

Grove-GCK30451-Product-Guide-bw

prev-bw                                                                                                                                                                                                                                                                      next-bw

GROVE ALL TERRAIN CRANE CHART

Model Max Capacity  Main Boom Length Max Tip Height Gross Vehicle Weight More Info.



GCK3045

 45 t

(50 USt)

 34 m

(110 ft)

 6,3 - 10,2 m

(33 ft)

36, 000kg

(78, 000 lbs)

more info



GMK2035E

31.9 t

(35 USt)

13,7 m

(124 ft)

29 m

(95 ft)

26.5 t

(52, 910 lbs)

more info

GMK3055

55 t

(60 USt)

43 m

(141 ft)

60 m

(190 ft)

36, 000kg

(78, 200 lbs)

more info

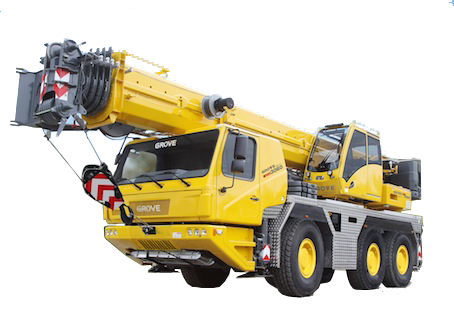

GMK3060

 60 t

(66 USt)

9.7 m - 43 m

(32ft - 141 ft)

 60.0 m

(190 ft)

36, 000kg

(79, 366 lbs)
more info

GMK4080-1

 80 t

(90 USt)

 51 m

(167 ft)

 75 m

(246 ft)

48, 000kg

(105, 700 lbs)

more info
GMK4100

100 t

(100 USt)

52 m

(171 ft)

82 m

(268 ft)

48, 000kg

(105,700 lbs)

more info
GMK4100L

100 t

(110 USt)

60 m

(197 ft)

85 m

(279 ft)

48, 000kg

(105, 000 lbs)

more info
GMK5095

 100 t

(110 USt)

 60 m

(197 ft)

83 m

(272 ft)

 60, 000kg

(141, 700 lbs)

more info
Model

Max Capacity

Main Boom Length

Max Tip Height

Gross Vehicle Weight

More Info.
GMK5110-1

110 t

(135 USt)

50, 6 m

(166 ft)

87 m

(285 ft)

60, 000kg

(141, 700 lbs)

more info
GMK5130-2

130 t

(165 USt)

60 m

(197 ft)

85 m

(279 ft)

48, 000kg

(105, 700 lbs)

more info
GMK5170

170 t

(225 USt)

64 m

(210 ft)

100 m

(331 ft)

60, 000kg

(141, 700 lbs)

more info
GMK5220

220 t

(275 USt)

68 m

(223 ft)

108 m

(355 ft)

60, 000kg

(141, 700 lbs)

more info
GMK6220L

220 t

(250 USt)

72 m

(236 ft)

112 m

(367 ft)

72, 000kg

(158, 800 lbs)

more info
GMK6300

300 t

(350 USt)

60 m

(197 ft)

113 m

(367 ft)

72, 000kg

(158, 800 lbs)

more info

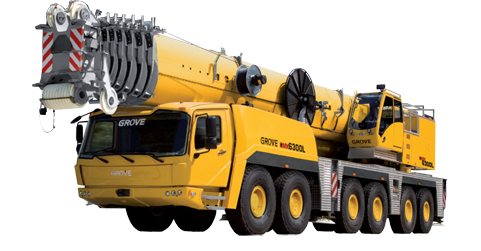

GMK6300L

300 t

(350 USt)

 80 m

(263 ft)

 119 m

(393 ft)

 72, 000kg

(158, 800lbs)

more info

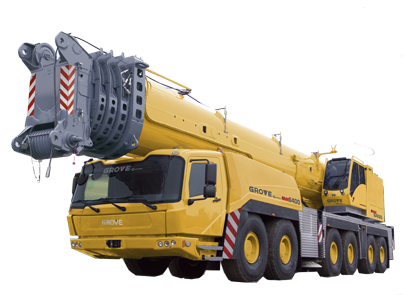

GMK6400

400 t

(450 USt)

60m

(197 ft)

136 m

(448 ft)

72, 000kg

(158, 800 lbs)

more info

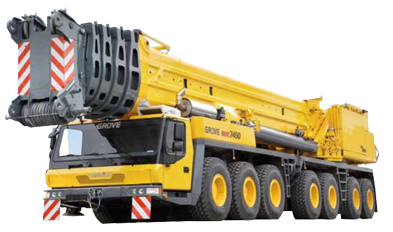

GMK7450

450 t

(550 USt)

60 m

(197 ft)

130 m

(430 ft)

 84 000kg

(185, 100 lbs)

more info

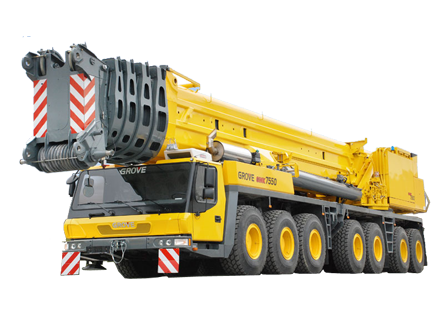

GMK7550

500 t

197 ft

443 ft

-

more info
